DataStax Graph and Studio with Docker Compose

Over the last year, Docker has quickly become my go-to way of spinning up infrastructure for development in my local Windows 10 environment. This is especially true of tools that don't otherwise support native Windows installation, for example, DataStax Enterprise (DSE).

Tools like Docker Compose make it really easy to declare a whole suite of infrastructure dependencies (by creating a .yaml file with the containers to run). That file can then be checked into source control with your project and shared with other developers. I made heavy use of this in the KillrVideo reference application so that developers trying out the code could easily spin up dependencies like the Web UI, DSE, and etcd.

Unfortunately, when I did the work on KillrVideo, DataStax didn't offer an official image for DSE on Docker Hub (something that's still true as of the publishing of this article). As a result, I had to roll my own image. Since doing that, I've gotten a number of contributions and questions, including one the other day that basically asked, "How do I run this and connect DSE Graph with DataStax Studio?".

If you're not familiar, DataStax Studio is a tool for querying and visualizing data in DSE Graph using a notebook format (similar to Apache Zeppelin or Jupyter notebooks). After quickly creating a Docker image for DataStax Studio, I thought it would be pretty simple to just create a docker-compose.yml to spin up a node of DSE in Graph mode along with an instance of Studio and start exploring. Unfortunately, it turned out to be a little more complicated than that.

TL;DR: If you're just interested in the final (working) example, you can find it on the GitHub repo of my DataStax Studio image. Please be sure to read the comments in that file for instructions.

This will be easy!

Basically what we need in our docker-compose.yml is two services:

1. A node of DSE running in graph mode.
2. An instance of Studio with port 9091 exposed so we can connect to the web UI.

That seems pretty straightforward, so let's start with this:

version: '2'

services:
  # One DSE node
  dse:
    image: luketillman/datastax-enterprise:5.0.4
    # Tell DSE to start a graph node
    command: [ -g ]
    cap_add:
    - IPC_LOCK
    ulimits:
      memlock: -1

  # One instance of DataStax Studio
  studio:
    image: luketillman/datastax-studio:1.0.2
    ports:
    # The Web UI exposed to our host
    - "9091:9091"
    depends_on:
    - dse

We can then start our containers by running:

> docker-compose up -d

If we open up a web browser and go to http://localhost:9091 we're able to see the Studio web UI. So far so good. Now if we go to the Connections tab, we can edit the connections to tell it to use our DSE Graph node that's also running in Docker.

Then we'll use the handy Test button to actually try out the connection.

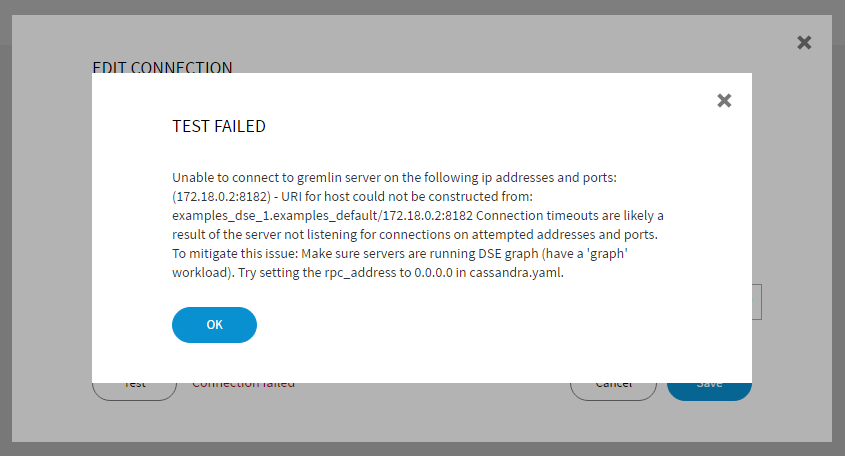

Wait, what?! Test failed? OK, time to try and figure out what's causing that error.

Digging around in the Apache Tinkerpop source code

Judging by that error message, Studio is trying to construct a URI of some kind in order to connect to our DSE Graph node (and failing miserably). We know that DSE Graph is built with Apache Tinkerpop so it stands to reason that maybe Studio is using a Tinkerpop driver under the covers to try and connect to our node. If we go and check out the source code for Tinkerpop and do some searching for that error message string, we come across Host.java in the gremlin-driver.

Here's the interesting method in that class:

private static URI makeUriFromAddress(final InetSocketAddress addy, final boolean ssl) {
  try {
    final String scheme = ssl ? "wss" : "ws";
    return new URI(scheme, null, addy.getHostName(), addy.getPort(), "/gremlin", null, null);
  } catch (URISyntaxException use) {
    throw new RuntimeException(String.format("URI for host could not be constructed from: %s", addy), use);
  }
}

It appears that while trying to construct a URI, we're getting a syntax exception. So why is that happening? Let's go back and look at the InetSocketAddress included in the error message for some clues (with emphasis added):

Unable to connect to gremlin server on the following ip addresses and ports: (172.18.0.2:8182) - URI for host could not be constructed from: examples_dse_1.examples_default/172.18.0.2:8182

We told Studio to connect using our service name (dse) as the hostname, so where is it getting the hostname examples_dse_1.examples_default from? It looks like somewhere along the line, our dse hostname is getting resolved to examples_dse_1.examples_default. We can test this theory out real quick by doing an nslookup dse inside our running Studio container:

> docker-compose exec studio nslookup dse
nslookup: can't resolve '(null)': Name does not resolve

Name:      dse
Address 1: 172.18.0.2 examples_dse_1.examples_default

OK, so it looks like the hostname is coming from Docker's DNS. But why is it causing an error? Based on some experience from a bug at my previous company, I had an inkling that it might be the underscore characters (_) in the hostname. After some quick Googling, I came across this StackOverflow question and a related Java bug report.

It looks like that Java URI constructor doesn't play well with underscores. So how do we get rid of them?

Removing the Underscores from Docker Compose

First, it's probably worth mentioning how that hostname returned from Docker's DNS is being constructed. When Docker Compose started up our two services, it first created a network so they could communicate. If you don't actually specify any networking setup in your yaml file, Compose will create a network using the convention $PROJECT_default where $PROJECT is the name of your Docker Compose project. In my case, my project was called examples, so it was creating a network called examples_default.

The containers created by Docker Compose also follow a naming convention. The naming convention for containers created is $PROJECT_$SERVICE_$INSTANCE where $PROJECT is still the name of your Docker Compose project, $SERVICE is the name of the service from your yaml file, and $INSTANCE is the instance number of that service container. The instance number allows Docker Compose to support "scaling" the number of instances of a running service. So for our single instance of the DSE service, we end up getting a container named examples_dse_1.

Put the container name and the network name together and you get the hostname we're getting from Docker's DNS:

examples_dse_1.examples_default

Unfortunately, the underscores being added by Docker Compose's naming conventions aren't currently configurable (and the problems they cause as hostnames is a known issue going back to 2014). However, we can work around the problem by taking explicit control of both the network and the container names.

Changing the Network Name

The docker-compose.yml file itself doesn't give us any way to explictly specify the network name created by Compose. Instead, we have to resort to creating a network manually using the docker network command, then telling Compose to use that external network. Let's create a network called graph:

> docker network create graph

Then, we can update the yaml to tell Compose about our network and to tell our services to use that network.

version: '2'

# Our external network named 'graph'
networks:
  graph:
    external: true

services:
  # One DSE node
  dse:
    image: luketillman/datastax-enterprise:5.0.4
    # Tell DSE to start a graph node
    command: [ -g ]
    cap_add:
    - IPC_LOCK
    ulimits:
      memlock: -1
    # Use the externally created network
    networks:
    - graph

  # One instance of DataStax Studio
  studio:
    image: luketillman/datastax-studio:1.0.2
    ports:
    # The Web UI exposed to our host
    - "9091:9091"
    depends_on:
    - dse
    # Use the externally created network
    networks:
    - graph

Now if we start up our services and do an nslookup dse inside the Studio container, we can see some progress:

> docker-compose exec studio nslookup dse
nslookup: can't resolve '(null)': Name does not resolve

Name:      dse
Address 1: 172.18.0.2 examples_dse_1.graph

Our container name still has underscores, but our network name graph is now good to go.

Changing the DSE Container's Name

Overriding the container's name inside our docker-compose.yml file is actually a lot easier. The syntax supports adding a container_name to a service to explictly specify it, with the downside being that this will break the scaling feature of Compose. Since we don't care about scaling in this case, we can go ahead and override the container name for our DSE service:

version: '2'

# Our external network named 'graph'
networks:
  graph:
    external: true

services:
  # One DSE node
  dse:
    image: luketillman/datastax-enterprise:5.0.4
    # Tell DSE to start a graph node
    command: [ -g ]
    cap_add:
    - IPC_LOCK
    ulimits:
      memlock: -1
    # Use the externally created network
    networks:
    - graph
    # Specify the container name explicitly to avoid getting underscores
    container_name: dse

  # One instance of DataStax Studio
  studio:
    image: luketillman/datastax-studio:1.0.2
    ports:
    # The Web UI exposed to our host
    - "9091:9091"
    depends_on:
    - dse
    # Use the externally created network
    networks:
    - graph

We've explicitly named the container dse. Now if we do a nslookup dse inside of our Studio container, we get the results we want:

> docker-compose exec studio nslookup dse
nslookup: can't resolve '(null)': Name does not resolve

Name:      dse
Address 1: 172.18.0.2 dse.graph

The hostname dse.graph should be good enough. If we go back to the browser and open the Studio web UI again (localhost:9091), we find out that we're now able to successfully connect when using the host dse.

Turns out that wasn't so easy

The full working example is available on GitHub. I'm not sure how I managed, but somehow a task that I thought would take an hour tops turned into a multi-day slog through source code, documentation, Stack Overflow, and trying multiple workarounds. While this turned out to be a weird confluence of long-standing Java and Docker Compose issues, I have hope that maybe one of them will get fixed, removing the need for complicated workarounds in the future.
