Showing Off Cassandra on Azure

One of the cool things about the evangelist team at DataStax is that we're encouraged to spend time writing code to contribute back to the community. For example, Helena's work on the Spark Cassandra connector, Jon's work on cqlengine, or even my latest foray into OSS, CqlPoco. At Cassandra Summit 2014 last week, many of us got the opportunity to connect with members of the Cassandra community about some of that work and in my case, I even got the opportunity to give a talk about it.

My talk was entitled "Highly Scalable Web Application in the Cloud with Cassandra, C#, and Azure" and was great because I got the chance to show off Cassandra running live in Azure. And I got to do it while co-presenting with Jeremiah Talkar, an Azure Evangelist at Microsoft. Showing up at an OSS conference like Cassandra Summit with a guy from Microsoft might seem a bit like bringing Darth Vader to a summit for the Rebel Alliance, but Microsoft has really started embracing open source, so I don't feel like it was too much of a stretch. (The example I use a lot recently is the ASP.NET vNext web stack being available on GitHub under the Apache 2 license--my mind is blown.) And let's be honest, a better fit for the Darth Vader analogy would have been bringing Larry Ellison to the Summit.

KillrVideo Demo

My talk was all about KillrVideo, a demo video sharing application built in C# and running on top of Cassandra with a live copy of the demo running in Azure. All the code, including the data model, is available on my GitHub and anyone with an Azure account should be able to get it up and running locally pretty easily. The application tries to show off some of the capabilities of the DataStax .NET driver for Cassandra, as well as some data modelling techniques for Cassandra. It also uses some Azure services, like Media Services and Storage to support video uploads, re-encoding of source videos to something that's web streaming compatible, thumbnail generation, etc.

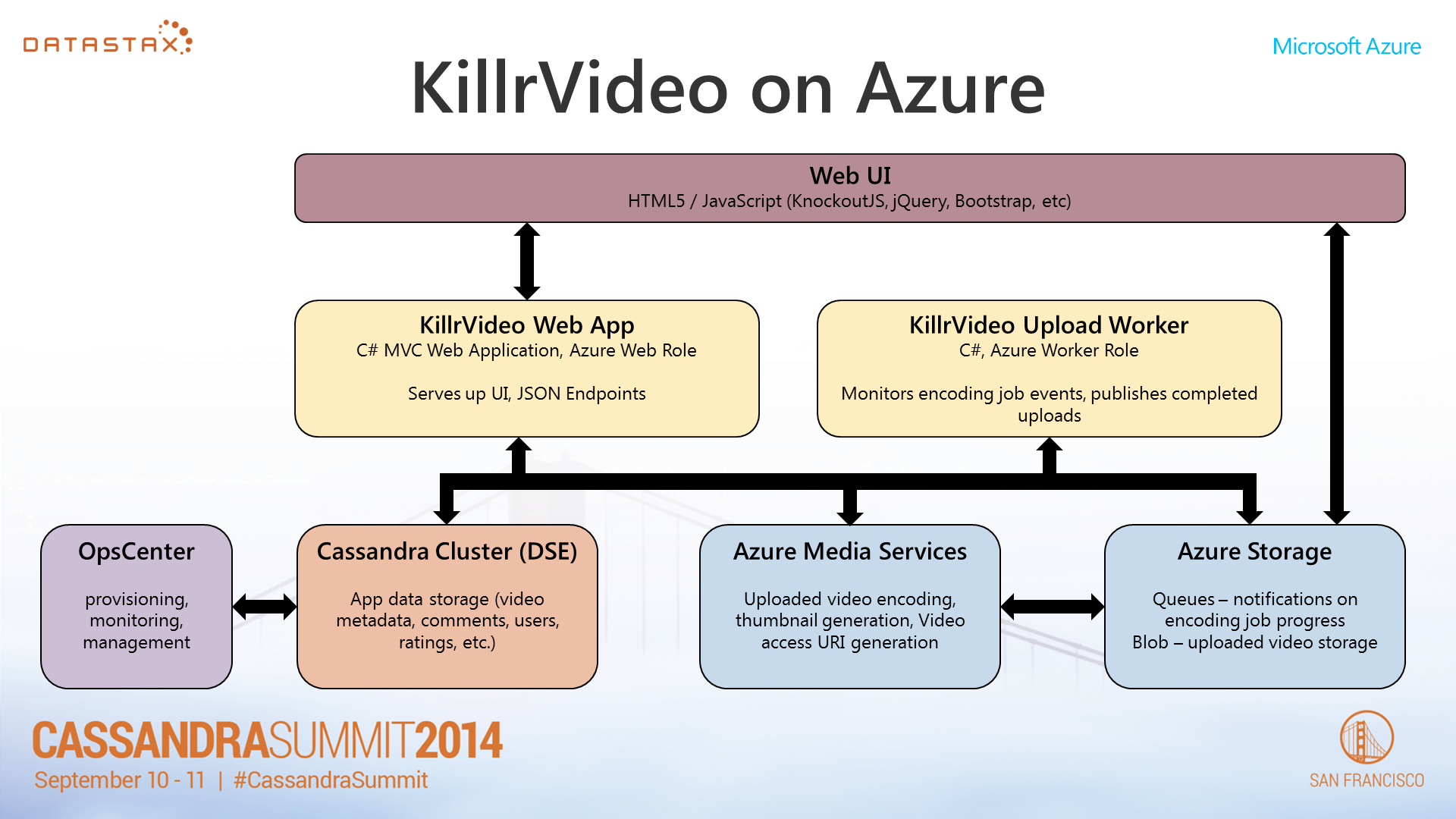

Here's a slide from my presentation at the Summit showing off the basic logical architecture of the site.

I think the boxes on the slide do a pretty good job summarizing what's going on within the app, and the arrows represent how data flows and what components are talking to each other as you move down the stack from the app tier (in yellow) to some of the infrastructure components along the bottom of the slide. Architectually, it's a pretty good place to be because every component you see on that slide is able to be scaled horizontally with pretty minimal effort (whether that's adding more reserved video encoding power with Azure Media Services, adding more workers in the two app tier roles, or adding more nodes to my DataStax Enterprise Cassandra cluster).

Side Note About that Arrow from the Web UI to Azure Storage

One interesting side note about that slide--you may have noticed that we have an arrow going directly from the Web UI tier (i.e. the browser) back to Azure Storage. This is to represent what we do when users upload videos to the site. In that scenario, we upload their video files directly to the Azure Storage account associated with our Media Services account so we don't put unnecessary load on our web tier just to stream data into Azure Storage. We can do this (even though Azure Storage and our demo site are on different domains and thus subject to browser cross-domain restrictions) by taking advantage of some of the new HTML5 File APIs and CORS-enabled uploads directly to Azure Storage.

Setting up Cassandra on Azure

I'm hoping that in the very near future we (DataStax) will be making public some documentation and scripts we've been working on with the team at Microsoft that includes recommendations on how to setup and configure Cassandra in Azure. (Huge props to Matt Kennedy, Rustam Aliyev, and all the others involved at both DataStax and Microsoft in testing Cassandra on Azure). But until that GitHub repo becomes public, I'll quickly mention how I setup KillrVideo there. This is a just a very high level overview of the steps involved:

1. Create an affinity group for your application that will be using Cassandra.
2. Create a virtual network for your Cassandra cluster. Since vnets are no longer associated with affinity groups, just make sure it's in the same data center as your affinity group.
3. Create some Azure Storage accounts to hold the data disks for your Cassandra nodes. Our performance testing seemed to indicate that you'll need 1 storage account for every 2 Cassandra nodes in your cluster, as 2 nodes seem to be able to use 80-90% of the IOPS limit on a single storage account.
4. Create a Cloud Service that can be used to expose an HTTP Endpoint for OpsCenter for management/provisioning of your cluster.
5. Spin up some Linux VMs in your Cloud Service for your Cassandra Nodes, as well as one for OpsCenter. I deployed 3 VMs for Cassandra nodes plus 1 VM to run OpsCenter:
   • VM image used: 5112500ae3b842c8b9c604889f8753c3__OpenLogic-CentOS-65-20140606
   • Size: A4 for Cassandra nodes (but we recommend using A7s for a real production cluster), A2 for OpsCenter
   • Data Disks: 16 disks x 64 GB each on each Cassandra node VM
   • Subnet / IP: The VM should use the Subnet and Set a static IP inside the virtual network you created
   • SSH access: Add an Azure endpoint and your SSH key to the VM if you want to be able to access the VM via SSH (and you'll want to)
6. Setup the data disks on each Linux VM. This basically came down to:
   • Using mdadm to stripe the 16 data disks into a RAID0 setup and a single device
   • Create a filesystem on that device using mkfs.ext4
   • Create a /var/lib/cassandra directory
   • Edit /etc/fstab to point /var/lib/cassandra at the new device we created with mdadm
   • Mount /var/lib/cassandra

At this point, I was ready to install OpsCenter on its designated VM and expose it via a Cloud Service HTTP endpoint in Azure. You'll definitely want to turn on HTTPS and authentication in OpsCenter since you'll be exposing it via a public endpoint in Azure. Once I had OpsCenter running and I could login via the web UI (exposed as an Azure endpoint), provisioning a DataStax Enterprise cluster was a simple point and click affair where all I had to provide was the IP addresses (on my Azure vnet) for the node VMs.

The Future of Azure Deployments

The steps above were deliberately a bit vague and without scripts to automate the VM setup. This is because I want to wait until DataStax and Microsoft make this information public so you can go directly to the source for it. So a disclaimer: hopefully the steps above will get you started with setting things up if you're interested, but stay tuned for the official guidance on not only how to set things up, but also how to automate that setup.

I'm really hoping that KillrVideo will help other .NET developers looking to get started with Cassandra see some of what's possible. And with the live demo in Azure, along with the cooperation happening between the teams at Microsoft and DataStax I'm also hoping that Cassandra in Azure is a real option for developers of all languages going forward. And if things don't work out, maybe I can get Oracle to tag along for next year's Summit.
